Modeling help and "Warning' Loops reached maximum" Error

[keanu06]

Hello,

I am also getting this error except it is "WARNING: loops reached maximum:251". I've used different databases and tried a variety of different things but not sure what the issue is.

I am trying to model this metapelite from my sample area, my stable mineral assemblage is (Pl+Chl+Ctd+Ms+Qz) and I'm using td-ds62-mp50-05 database, bulk composition of Bulk(1)= SI(5.199)AL(2.872)FE(0.964)MN(0.006)MG(0.235)CA(0.013)NA(0.099)K(0.613)O(?)O(0.01)H(60). With GRT,FSP4TR, ABHGP,PLC,PLI,EP11,MRG,WM,BI14,CD14,ST14,CHL14,CTD14 activity models turned (minerals you'd expect to find in a metapelite. I have run multiple models at varying P-T conditions trying to find a field with my mineral assemblage, after numerous attempts I found that it lies ~400C and 100Bar, which seems extremely unlikely given the geology I know about the area (note; "Loops reached maximum" error was present in every model run I did). Am I missing something here or looking at it/doing something wrong? If anyone has any insight i'd appreciate it! If more information is needed i'd be happy to provide it.

Thank you! Happy holidays!

[phorvath]

Hi Keanu,

I think I can help. Here are my thoughts:
1. Don't use the different feldspar models at the same time (PLC, PlI or FSP4TR), only one. The FSP4TR is the best or at least the newest. The warning message is probably due to the ordering in the chlorite model, but when I ran your data, I had no warnings.
2. I had no problems running Theriak/Domino wuth your bulk data using only FSP4TR. I did 2 runs, one with Mn and one without it. Mn is so low, it seems reasonable. The resulting PT diagrams are practically identical, only the Grt-in line is at lower T when Mn added to the bulk (no surprise). The run without Mn is half the time of the other.
3. Your peak assemblage is only stable without Pl, but it has Mrg.
4. Your bulk data values look different than the one I am using. Can you send me your original bulk (XRF)?

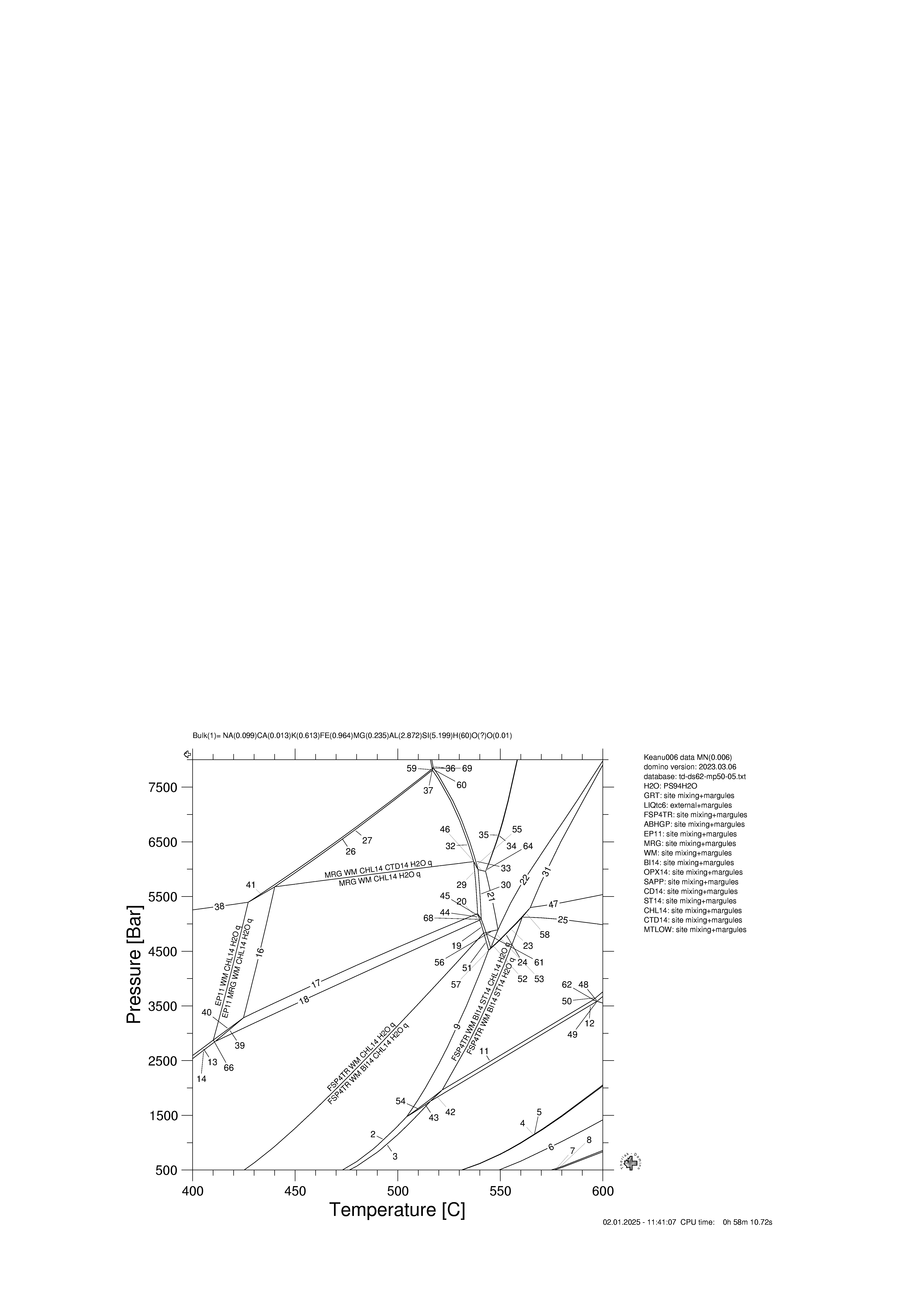

I attach the 2 diagrams.
I can't attach the 2 tables with the labelled reactions, so here they are:

Keanu_data reactions:
1): FSP4TR WM CHL14 H2O q = FSP4TR WM BI14 CHL14 H2O q
2): FSP4TR WM BI14 CHL14 H2O q = FSP4TR WM BI14 CHL14 H2O and q
3): FSP4TR WM BI14 CHL14 H2O and q = FSP4TR WM BI14 H2O and q
4): FSP4TR WM BI14 H2O and q = (2)FSP4TR WM BI14 H2O and q
5): (2)FSP4TR WM BI14 H2O and q = (2)FSP4TR BI14 H2O and q
6): (2)FSP4TR BI14 H2O and q = (2)FSP4TR BI14 CD14 H2O and q
7): (2)FSP4TR BI14 CD14 H2O and q = (2)FSP4TR BI14 CD14 MTLOW H2O and q
8): (2)FSP4TR BI14 CD14 MTLOW H2O and q = (2)FSP4TR BI14 CD14 MTLOW H2O q
9): FSP4TR WM BI14 CHL14 H2O q = FSP4TR WM BI14 ST14 CHL14 H2O q
10): FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 H2O q
11): FSP4TR WM BI14 ST14 H2O q = FSP4TR WM BI14 ST14 H2O and q
12): FSP4TR WM BI14 ST14 H2O and q = GRT FSP4TR WM BI14 ST14 H2O and q
13): GRT FSP4TR WM BI14 ST14 H2O and q = GRT FSP4TR WM BI14 H2O and q
14): GRT FSP4TR WM BI14 H2O and q = FSP4TR WM BI14 H2O and q
15): EP11 WM CHL14 H2O q = FSP4TR EP11 WM CHL14 H2O q
16): FSP4TR EP11 WM CHL14 H2O q = FSP4TR WM CHL14 H2O q
17): FSP4TR WM BI14 CHL14 H2O q = GRT FSP4TR WM BI14 CHL14 H2O q
18): GRT FSP4TR WM BI14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 CHL14 H2O q
19): GRT FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 CHL14 H2O q
20): EP11 WM CHL14 H2O q = EP11 MRG WM CHL14 H2O q
21): EP11 MRG WM CHL14 H2O q = MRG WM CHL14 H2O q
22): MRG WM CHL14 H2O q = FSP4TR MRG WM CHL14 H2O q
23): FSP4TR MRG WM CHL14 H2O q = FSP4TR WM CHL14 H2O q
24): FSP4TR WM CHL14 H2O q = GRT FSP4TR WM CHL14 H2O q
25): GRT FSP4TR WM CHL14 H2O q = GRT FSP4TR WM BI14 CHL14 H2O q
26): GRT FSP4TR WM BI14 CHL14 H2O q = GRT WM BI14 CHL14 H2O q
27): GRT WM BI14 CHL14 H2O q = GRT WM BI14 ST14 CHL14 H2O q
28): GRT WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 CHL14 H2O q
29): GRT FSP4TR WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q
30): MRG WM CHL14 H2O q = GRT MRG WM CHL14 H2O q
31): GRT MRG WM CHL14 H2O q = GRT WM CHL14 H2O q
32): GRT WM CHL14 H2O q = GRT WM ST14 CHL14 H2O q
33): GRT WM ST14 CHL14 H2O q = GRT WM BI14 ST14 CHL14 H2O q
34): EP11 WM CHL14 CTD14 H2O q = EP11 MRG WM CHL14 CTD14 H2O q
35): EP11 MRG WM CHL14 CTD14 H2O q = MRG WM CHL14 CTD14 H2O q
36): MRG WM CHL14 CTD14 H2O q = MRG WM CHL14 H2O q
37): GRT WM BI14 ST14 CHL14 H2O q = GRT WM BI14 ST14 H2O q
38): MRG WM CHL14 CTD14 H2O q = GRT MRG WM CHL14 CTD14 H2O q
39): GRT MRG WM CHL14 CTD14 H2O q = GRT WM CHL14 CTD14 H2O q
40): GRT WM CHL14 CTD14 H2O q = GRT WM ST14 CHL14 CTD14 H2O q
41): GRT WM ST14 CHL14 CTD14 H2O q = GRT WM ST14 CHL14 H2O q
42): EP11 WM CHL14 CTD14 H2O q = GRT EP11 WM CHL14 CTD14 H2O q
43): GRT EP11 WM CHL14 CTD14 H2O q = GRT EP11 MRG WM CHL14 CTD14 H2O q
44): GRT EP11 MRG WM CHL14 CTD14 H2O q = GRT MRG WM CHL14 CTD14 H2O q
45): GRT EP11 WM CHL14 CTD14 H2O q = GRT WM CHL14 CTD14 H2O q
46): EP11 WM CHL14 CTD14 H2O q = EP11 WM CHL14 H2O q
47): FSP4TR EP11 MRG WM CHL14 H2O q = FSP4TR MRG WM CHL14 H2O q
48): FSP4TR EP11 MRG WM CHL14 H2O q = EP11 MRG WM CHL14 H2O q
49): EP11 MRG WM CHL14 H2O q = EP11 MRG WM CHL14 CTD14 H2O q
50): FSP4TR WM BI14 ST14 CHL14 H2O and q = FSP4TR WM BI14 ST14 H2O and q
51): FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 CHL14 H2O and q
52): GRT FSP4TR WM CHL14 H2O q = GRT FSP4TR MRG WM CHL14 H2O q
53): GRT MRG WM CHL14 H2O q = GRT FSP4TR MRG WM CHL14 H2O q
54): GRT MRG WM CHL14 CTD14 H2O q = GRT MRG WM CHL14 H2O q
55): GRT WM BI14 CHL14 H2O q = GRT WM CHL14 H2O q
56): GRT WM CHL14 CTD14 H2O q = GRT WM CHL14 H2O q
57): GRT FSP4TR WM BI14 ST14 H2O q = FSP4TR WM BI14 ST14 H2O q
58): GRT WM BI14 ST14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q
59): GRT FSP4TR WM BI14 H2O sill q = GRT FSP4TR WM BI14 H2O and q
60): GRT FSP4TR WM BI14 ST14 H2O sill q = GRT FSP4TR WM BI14 H2O sill q
61): GRT FSP4TR WM BI14 ST14 H2O q = GRT FSP4TR WM BI14 ST14 H2O sill q
62): FSP4TR WM BI14 ST14 CHL14 H2O and q = GRT FSP4TR WM BI14 ST14 CHL14 H2O and q
63): GRT FSP4TR WM BI14 ST14 CHL14 H2O and q = GRT FSP4TR WM BI14 CHL14 H2O and q
64): GRT FSP4TR WM BI14 CHL14 H2O and q = GRT FSP4TR WM BI14 H2O and q
65): GRT FSP4TR WM BI14 CHL14 H2O and q = FSP4TR WM BI14 CHL14 H2O and q
66): FSP4TR WM BI14 ST14 CHL14 H2O and q = FSP4TR WM BI14 CHL14 H2O and q
67): FSP4TR MRG WM CHL14 H2O q = GRT FSP4TR MRG WM CHL14 H2O q
68): GRT FSP4TR WM CHL14 H2O q = GRT WM CHL14 H2O q
69): GRT WM CHL14 CTD14 H2O q = GRT WM ST14 CHL14 H2O q
70): GRT FSP4TR WM BI14 ST14 H2O q = GRT FSP4TR WM BI14 ST14 H2O and q
71): GRT FSP4TR WM BI14 ST14 H2O sill q = GRT FSP4TR WM BI14 ST14 H2O and q
72): EP11 MRG WM CHL14 CTD14 H2O q = GRT EP11 MRG WM CHL14 CTD14 H2O q
73): FSP4TR WM BI14 ST14 CHL14 H2O and q = GRT FSP4TR WM BI14 CHL14 H2O and q
74): GRT FSP4TR WM BI14 CHL14 H2O q = FSP4TR WM BI14 ST14 CHL14 H2O q
75): GRT FSP4TR WM BI14 CHL14 H2O q = GRT WM BI14 ST14 CHL14 H2O q
76): EP11 MRG WM CHL14 CTD14 H2O q = MRG WM CHL14 H2O q
77): FSP4TR WM BI14 ST14 H2O q = GRT FSP4TR WM BI14 ST14 H2O and q
78): GRT FSP4TR WM BI14 ST14 CHL14 H2O and q = GRT FSP4TR WM BI14 ST14 H2O and q
79): FSP4TR EP11 MRG WM CHL14 H2O q = FSP4TR EP11 WM CHL14 H2O q
80): GRT FSP4TR WM BI14 CHL14 H2O and q = FSP4TR WM BI14 ST14 CHL14 H2O and q
81): GRT FSP4TR WM BI14 ST14 CHL14 H2O and q = GRT FSP4TR WM BI14 CHL14 H2O and q
82): FSP4TR WM BI14 ST14 CHL14 H2O and q = GRT FSP4TR WM BI14 ST14 CHL14 H2O and q
83): FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 H2O and q
84): GRT FSP4TR WM BI14 ST14 CHL14 H2O and q = GRT FSP4TR WM BI14 H2O and q
85): GRT FSP4TR MRG WM CHL14 H2O q = FSP4TR WM CHL14 H2O q
86): GRT WM CHL14 H2O q = GRT WM BI14 ST14 CHL14 H2O q
87): GRT WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q

Keanu_data_noMn reactions:
1): FSP4TR WM CHL14 H2O q = FSP4TR WM BI14 CHL14 H2O q
2): FSP4TR WM BI14 CHL14 H2O q = FSP4TR WM BI14 CHL14 H2O and q
3): FSP4TR WM BI14 CHL14 H2O and q = FSP4TR WM BI14 H2O and q
4): FSP4TR WM BI14 H2O and q = (2)FSP4TR WM BI14 H2O and q
5): (2)FSP4TR WM BI14 H2O and q = (2)FSP4TR BI14 H2O and q
6): (2)FSP4TR BI14 H2O and q = (2)FSP4TR BI14 CD14 H2O and q
7): (2)FSP4TR BI14 CD14 H2O and q = (2)FSP4TR BI14 CD14 MTLOW H2O and q
8): (2)FSP4TR BI14 CD14 MTLOW H2O and q = (2)FSP4TR BI14 CD14 MTLOW H2O q
9): FSP4TR WM BI14 CHL14 H2O q = FSP4TR WM BI14 ST14 CHL14 H2O q
10): FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 H2O q
11): FSP4TR WM BI14 ST14 H2O q = FSP4TR WM BI14 ST14 H2O and q
12): FSP4TR WM BI14 ST14 H2O and q = FSP4TR WM BI14 H2O and q
13): EP11 WM CHL14 H2O q = FSP4TR EP11 WM CHL14 H2O q
14): FSP4TR EP11 WM CHL14 H2O q = FSP4TR WM CHL14 H2O q
15): EP11 WM CHL14 H2O q = EP11 MRG WM CHL14 H2O q
16): EP11 MRG WM CHL14 H2O q = MRG WM CHL14 H2O q
17): MRG WM CHL14 H2O q = FSP4TR MRG WM CHL14 H2O q
18): FSP4TR MRG WM CHL14 H2O q = FSP4TR WM CHL14 H2O q
19): FSP4TR WM CHL14 H2O q = GRT FSP4TR WM CHL14 H2O q
20): GRT FSP4TR WM CHL14 H2O q = GRT WM CHL14 H2O q
21): GRT WM CHL14 H2O q = GRT WM ST14 CHL14 H2O q
22): GRT WM ST14 CHL14 H2O q = GRT WM BI14 ST14 CHL14 H2O q
23): GRT WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 CHL14 H2O q
24): GRT FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 CHL14 H2O q
25): GRT FSP4TR WM BI14 ST14 H2O q = FSP4TR WM BI14 ST14 H2O q
26): EP11 WM CHL14 CTD14 H2O q = EP11 MRG WM CHL14 CTD14 H2O q
27): EP11 MRG WM CHL14 CTD14 H2O q = MRG WM CHL14 CTD14 H2O q
28): MRG WM CHL14 CTD14 H2O q = MRG WM CHL14 H2O q
29): MRG WM CHL14 H2O q = GRT MRG WM CHL14 H2O q
30): GRT MRG WM CHL14 H2O q = GRT WM CHL14 H2O q
31): GRT WM BI14 ST14 CHL14 H2O q = GRT WM BI14 ST14 H2O q
32): MRG WM CHL14 CTD14 H2O q = GRT MRG WM CHL14 CTD14 H2O q
33): GRT MRG WM CHL14 CTD14 H2O q = GRT WM CHL14 CTD14 H2O q
34): GRT WM CHL14 CTD14 H2O q = GRT WM ST14 CHL14 CTD14 H2O q
35): GRT WM ST14 CHL14 CTD14 H2O q = GRT WM ST14 CHL14 H2O q
36): EP11 WM CHL14 CTD14 H2O q = GRT EP11 WM CHL14 CTD14 H2O q
37): GRT EP11 WM CHL14 CTD14 H2O q = GRT WM CHL14 CTD14 H2O q
38): EP11 WM CHL14 CTD14 H2O q = EP11 WM CHL14 H2O q
39): FSP4TR MRG WM CHL14 H2O q = FSP4TR EP11 MRG WM CHL14 H2O q
40): FSP4TR EP11 MRG WM CHL14 H2O q = EP11 MRG WM CHL14 H2O q
41): EP11 MRG WM CHL14 H2O q = EP11 MRG WM CHL14 CTD14 H2O q
42): FSP4TR WM BI14 ST14 H2O and q = FSP4TR WM BI14 ST14 CHL14 H2O and q
43): FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 CHL14 H2O and q
44): GRT FSP4TR MRG WM CHL14 H2O q = FSP4TR MRG WM CHL14 H2O q
45): GRT MRG WM CHL14 H2O q = GRT FSP4TR MRG WM CHL14 H2O q
46): GRT WM CHL14 CTD14 H2O q = GRT WM CHL14 H2O q
47): GRT WM BI14 ST14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q
48): FSP4TR WM BI14 H2O sill q = FSP4TR WM BI14 H2O and q
49): FSP4TR WM BI14 ST14 H2O sill q = FSP4TR WM BI14 H2O sill q
50): FSP4TR WM BI14 ST14 H2O q = FSP4TR WM BI14 ST14 H2O sill q
51): FSP4TR WM BI14 CHL14 H2O q = GRT FSP4TR WM BI14 CHL14 H2O q
52): GRT WM BI14 CHL14 H2O q = GRT FSP4TR WM BI14 CHL14 H2O q
53): GRT WM BI14 CHL14 H2O q = GRT WM BI14 ST14 CHL14 H2O q
54): FSP4TR WM BI14 ST14 CHL14 H2O and q = FSP4TR WM BI14 CHL14 H2O and q
55): GRT MRG WM CHL14 H2O q = GRT MRG WM CHL14 CTD14 H2O q
56): GRT WM CHL14 H2O q = GRT WM BI14 CHL14 H2O q
57): GRT FSP4TR WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 CHL14 H2O q
58): GRT FSP4TR WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q
59): GRT EP11 MRG WM CHL14 CTD14 H2O q = EP11 MRG WM CHL14 CTD14 H2O q
60): GRT EP11 MRG WM CHL14 CTD14 H2O q = GRT MRG WM CHL14 CTD14 H2O q
61): GRT FSP4TR WM CHL14 H2O q = GRT FSP4TR WM BI14 CHL14 H2O q
62): FSP4TR WM BI14 ST14 H2O sill q = FSP4TR WM BI14 ST14 H2O and q
63): GRT WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q
64): GRT WM CHL14 CTD14 H2O q = GRT WM ST14 CHL14 H2O q
65): FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 CHL14 H2O and q
66): FSP4TR EP11 MRG WM CHL14 H2O q = FSP4TR EP11 WM CHL14 H2O q
67): FSP4TR MRG WM CHL14 H2O q = GRT FSP4TR WM CHL14 H2O q
68): GRT FSP4TR MRG WM CHL14 H2O q = GRT FSP4TR WM CHL14 H2O q
69): GRT EP11 WM CHL14 CTD14 H2O q = GRT EP11 MRG WM CHL14 CTD14 H2O q
70): GRT FSP4TR WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q
71): GRT WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 CHL14 H2O q
72): FSP4TR WM BI14 ST14 CHL14 H2O and q = FSP4TR WM BI14 H2O and q
73): FSP4TR WM BI14 ST14 CHL14 H2O q = FSP4TR WM BI14 ST14 H2O and q
74): FSP4TR EP11 MRG WM CHL14 H2O q = FSP4TR WM CHL14 H2O q
75): EP11 WM CHL14 CTD14 H2O q = EP11 MRG WM CHL14 H2O q
76): MRG WM CHL14 H2O q = GRT MRG WM CHL14 CTD14 H2O q
77): GRT WM BI14 ST14 CHL14 H2O q = GRT FSP4TR WM BI14 ST14 H2O q


Let me know if I can help with anything else.

Happy New Year!
Peter
